Battery |
2X55AH | 2X75AH |
| Motor power |
24V 1000W |
|
| Charger |
24V 5A |
24V 6A |
| Front Tire |
13*5.00-6 |
|
| Rear Tire |
13*5.00-6 |
|
| Max. climbing degree |
15° |
|
| Max. speed (km/h) |
15km/h |
|
| Max. loading weight |
140 kgs |
|
| Travel Range |
45 km |
60km |

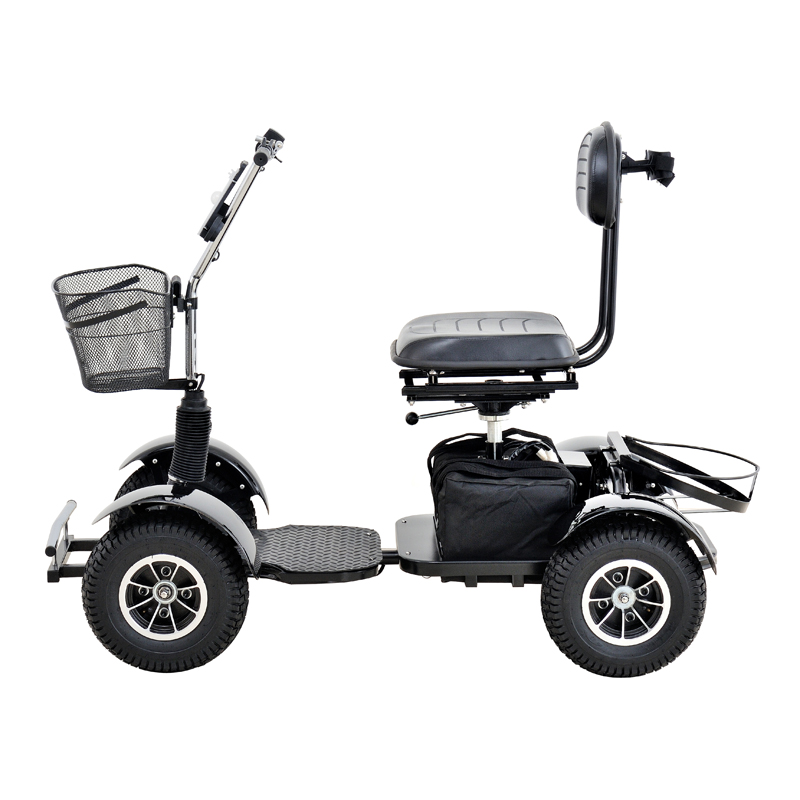

| Overall dimensions |
1460×705×1120mm |
|
|
Weight w/o battery |
65kg |
|
|
Total Weight w/Bat. |
98kg |
114kg |
|
Turning Radius |
1.5m |
|
|
Ground Clearance |
110mm |
|
|
Drive System |
24V Sealed Mid Transaxle |
|
|
Brake System |
electromagnetic brake |
|
|
Wheel Hub |
Aluminum Alloy |
|
|

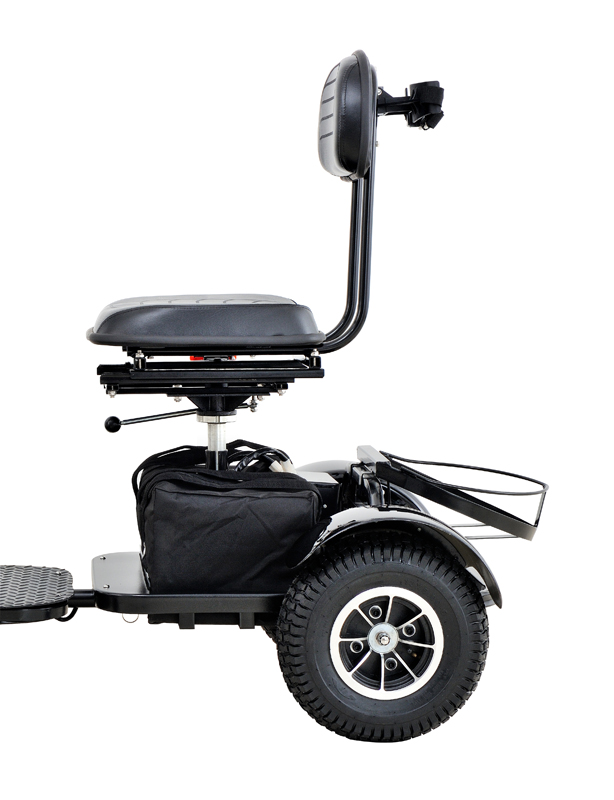

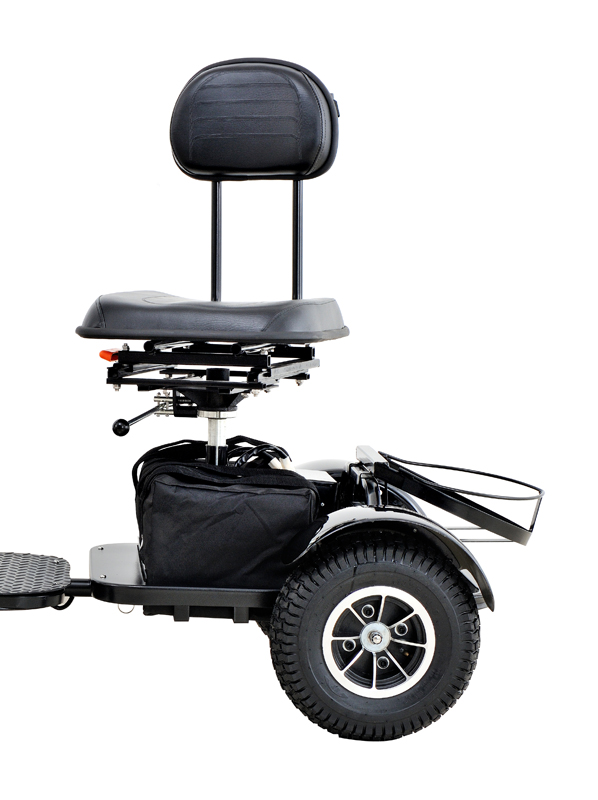

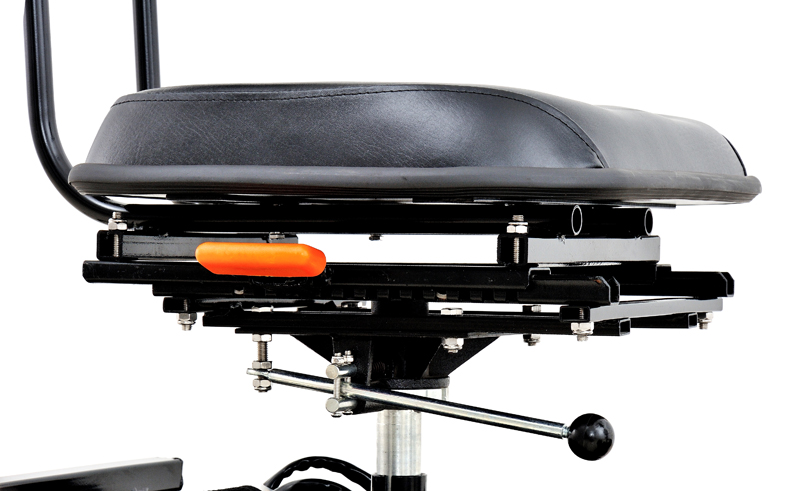

Seating |
Position Adjustment - Foldable seat |
|
|
Qty/20' |
48pcs |
|
|
Qty/40'HQ |
90pcs |
|
